- Construction of stainless steel and 304 anodized aluminium ensures durability
- High-grade of stainless steel 316 filling pumps
- 5m long x 100mm slat band conveyor
- Stainless steel/brushed aluminium side frames.
- Delryn slat.
- AC brushless drive-motor with system linked variable speed control.
- Integrated digital control with Panasonic PLC and Delta colored HMI controls for easy operation.
- Full-length product guide-rails.
- Bottle gating system to accurately locate bottles under each filling station.
- 1000ml max dosage per filling cycle **subject to cylinder capacity**.
- Dimensions 2000 mm(L) x 1000 mm(W) x 1840 mm(H)
- System can draw liquid from any external source **subject to pipe length**.
- Pneumatic filling nozzles available
- CE/UKCA certified and badged
- Flexible enough to handle production schedule and product changes quickly and simply
- Filling accuracy +/- 0.5%
- Output speed capabilities: 15 – 30 bottles per minute (subject to filling capacity)
- Emergency stop function.
- Servo drive motors for total control and accuracy during the filling cycle.
- Memory slots for storing capping parameters for future operation
- Easy to install and operate, it only requires minimum maintenance for maximum performance and a long machine life time.
- Fill range: 10ml – 1000ml
- Perfect inline connection with CP-10 semi-automatic capping machine.

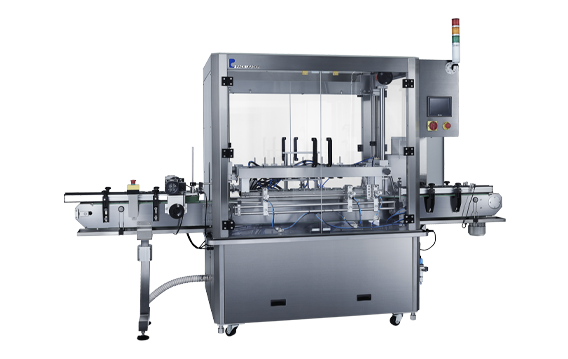

| Model | BR-108 |
|---|---|
| Voltage | 380/415V, 60HZ, 3 Phases |
| Rinsing Heads | 8 heads of water & air rinsing |
| Power Consumption | 3.3KW |
| Air | 4-6 KG |
| Machine Dimension | (L)3124mm X (W)1530mm X (H)1888mm |
| Net Weight | 850KGS |
